LEX M20
The LEX M20's design is notably rugged, intended for extreme military environments. It features water and dust sealing, enhanced drop resistance, and a touch screen, underlining its durability and adaptability. The device supports critical military functions, like secure communications and logistical support, through its Android operating system and various operational applications. This blend of robust design and advanced technology equips the LEX M20 to enhance awareness and safety in harsh battlefield conditions.
INTERFACE INNOVATION
Large PTT button
5" Touch Display
Camera Capabilities
As the designer who took over the LEX M20 project after the initial designer, Mark Palmer, left Motorola, I was involved from the early stages of development. Collaborating with engineers in Malaysia and Israel, we finalized the overall concept and details of the device. Our focus was on refining aspects such as the topcap, button ergonomics, display protection, assembly methods, and modularity. Additionally, we prioritized wearability and developed accessories like holsters and vehicle cradles. A key part of our work involved ensuring seamless audio routing between LTE and LMR, collaborating closely with the HF team to address usability issues effectively.
DESIGN LANGUAGE
Award winner DL
Legacy Design Elements
(Speaker / PTT / Buttons DNA)
Jawbone Form Factor for better grip

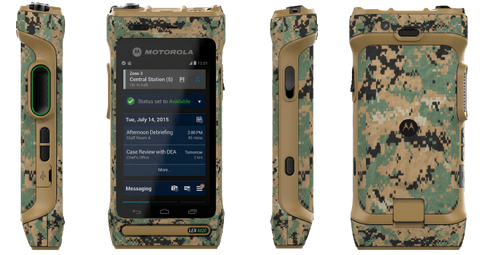

The design of the LEX M20 focuses on ergonomics, particularly for handling a larger device. To minimize its overall size while ensuring comfort, the perimeter around the battery is shaped to fit the hand, a feature known as the "jawbone design." This ergonomic focus is complemented by aesthetic continuity, as seen in the pill-shaped PTT button and the speaker, which are modern interpretations of elements from the legacy DL series, blending traditional design with a contemporary look.
ARCHITECTURE INNOVATION
CMF (Color Material Finish)

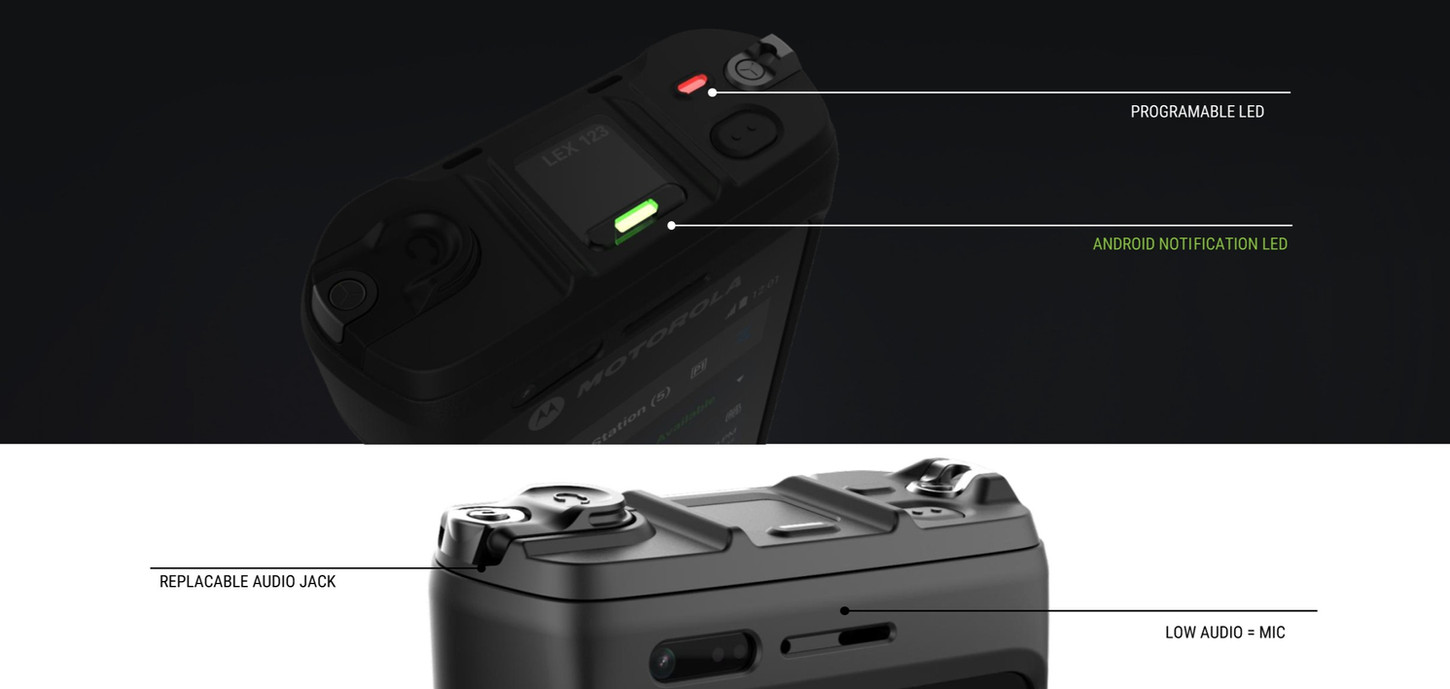

In the final design stages of the LEX M20, particular attention was given to the LED lighting and various affordances such as lanyard features and the audio jack. We also explored a range of Color, Material, and Finish (CMF) options suitable for military field use. These choices emphasized celebrating the device's IP68 features, highlighting its resilience and functionality in demanding environments. This focus on detail ensured that the LEX M20 was not only practical for military applications but also aesthetically aligned with its intended use.
